Hunt Mini Excavators

Orange mini excavator with a digging attachment displayed against a blue background.

Our mini excavators are top-of-the-line machines designed to deliver unmatched performance, precision, and reliability. Compact yet powerful, they are perfect for tackling tasks such as digging, trenching, demolition, and landscaping in even the tightest spaces. We pride ourselves on maintaining our mini excavators to the highest standards, ensuring they operate safely and efficiently on every job site. Whether you're working on a residential, commercial, or industrial project, our top-quality mini excavators provide the advanced features, durability, and ease of use you need. Experience the difference of our top-of-the-line mini excavators and take your project to the next level.

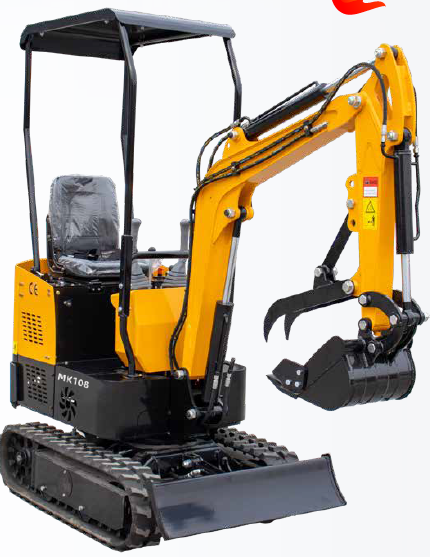

MK108 MINI EXCAVATOR

  • MK108 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful

    • Weight: 1000 kg

    • Digging Bucket Capacity: 0.025 cbm / 120 kg

    • Bucket Width: 380 mm

    • Engine: Koop (292f)

    • Optional Engine: Briggs & Stratton, Yanmar

    • Bore Stroke: Single Cylinder, Fan Cool

    • Rated Power: 7 kW / 3000 r/min

    • Displacement: 6.8 ml/r

    • Travel Speed: 1.5 km/h

    • Overall Dimension (L x W x H): 2775 x 930 x 2219 mm

    • Wheelbase: 910 mm

    • Total Length of Track: 1230 mm

    • Platform Ground Clearance: 380 mm

    • Platform Back Turning Radius: 784 mm

    • Chassis Width: 897 mm

    • Track Width: 180 mm

    • Chassis Ground Clearance: 132 mm

    • Track Height: 320 mm

    • Max. Digging Depth: 1750 mm

    • Max. Vertical Digging Depth: 1375 mm

    • Max. Digging Height: 2610 mm

    • Max. Dumping Height: 1850 mm

    • Max. Digging Radius on Ground: 2850 mm

    • Min. Rotation Radius: 1330 mm

    • Max. Upgrade Height of Bulldozer Blade: 345 mm

    • Max. Digging Depth of Bulldozer Blade: 255 mm

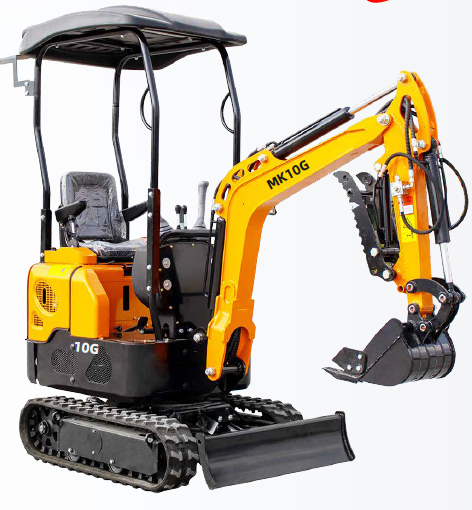

MK10G MINI EXCAVATOR

  • MK10G multi-functional mini excavator complies with Euro 5 standards

    and EPA environmental requirements, has ISO and CE certification, and

    supports OEM and ODM customization. The four-legged shed can be

    replaced with a closed cab, and the engine is powerful.

    • Weight: 890 kg

    • Digging Bucket Capacity: 0.02 cbm / 120 kg

    • Rotation Speed: 12 RPM

    • Climbing Capacity: 30°

    • Engine: KOOP 192 / Kubota

    • Main Valve: Beifang

    • Rated Power: 10.2 kW / 2500 RPM

    • Overall Length / Transport Length (A/M): 4000 / 2380 mm

    • Overall Width (B): 940 mm

    • Overall Height (Cab Roof, C): 2268 mm

    • Total Track Width (D): 930 mm

    • Standard Track Plate Width (E): 180 mm

    • Track Gauge (F): 750 mm

    • Wheelbase (H): 884 mm

    • Track Ground Length (I): 962 mm

    • Track Length (J): 1204 mm

    • Minimum Ground Clearance (K): 100 mm

    • Tail Swing Radius (L): 810 mm

    • Max. Digging Height: 2455 mm

    • Max. Dumping Height: 1605 mm

    • Max. Digging Depth: 1855 mm

    • Max. Digging Radius on Ground: 3050 mm

    • Max. Digging Radius: 3130 mm

MKP108 MINI EXCAVATOR

  • MK108 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful

    • Weight: 1000 kg

    • Digging Bucket Capacity: 0.025 cbm / 120 kg

    • Bucket Width: 380 mm

    • Engine: B&S Gasoline Engine / Koop

    • Rated Power: 10.1 kW / 7 kW

    • Bore Stroke: 70 x 55

    • Displacement: 0.211 L

    • Travel Speed: 1.5 km/h

    • Overall Dimensions (L x W x H): 2900 mm x 900 mm / 930 mm x 2180 mm

    • Wheelbase: 910 mm

    • Total Length of Track: 1230 mm

    • Platform Ground Clearance: 380 mm

    • Platform Back Turning Radius: 784 mm

    • Chassis Width: 896 mm

    • Track Width: 180 mm

    • Chassis Ground Clearance: 132 mm

    • Track Height: 320 mm

    • Max. Digging Depth: 1750 mm

    • Max. Vertical Digging Depth: 1550 mm

    • Max. Digging Height: 2610 mm

    • Max. Dumping Height: 1850 mm

    • Max. Digging Radius on Ground: 3050 mm

    • Min. Rotation Radius: 1330 mm

    • Max. Upgrade Height of Bulldozer Blade: 345 mm

    • Max. Digging Depth of Bulldozer Blade: 255 mm

MK12 MINI EXCAVATOR

  • MK12 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful.

    • Size (L x W x H): 2200 x 930 x 2250 mm

    • Machine Weight: 1200 kg

    • Engine: Kubota D722, 10.2 kW

    • Climb Capacity: 30°

    Tank Capacities

    • Hydraulic Tank: 16 L

    • Fuel Tank: 10 L

    Digging Capabilities

    • Max. Digging Depth: 1630 mm

    • Max. Digging Height: 2750 mm

    • Max. Digging Radius: 2900 mm

    • Minimum Rotate Radius: 1300 mm

    • Max. Digging Distance: 2100 mm

    Other Features

    • Dozer Blade Height: 180 mm

    • Cooling System: Hydraulic Oil Fan

MK109 MINI EXCAVATOR

  • MK109 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful.

    • Weight: 1000 kg

    • Digging Bucket Capacity: 0.025 cbm / 120 kg

    • Bucket Width: 380 mm

    • Engine: RATO 13.5HP

    • Bore Stroke: Single Cylinder, Fan Cool

    • Rated Power: 7 kW / 3000 r/min

    • Main Pump: G5-6

    • Displacement: 6.8 ml/r

    • Swing Motor: SANYANG (BMRS-250)

    • Overall Dimensions (L x W x H): 2775 x 930 x 2219 mm

    • Wheelbase: 910 mm

    • Total Length of Track: 1230 mm

    • Platform Ground Clearance: 380 mm

    • Platform Back Turning Radius: 784 mm

    • Chassis Width: 896 mm

    • Track Width: 180 mm

    • Chassis Ground Clearance: 132 mm

    • Track Height: 320 mm

    • Max. Digging Depth: 1650 mm

    • Max. Vertical Digging Depth: 1375 mm

    • Max. Digging Height: 2610 mm

    • Max. Dumping Height: 1850 mm

    • Max. Digging Radius on Ground: 2850 mm

    • Min. Rotation Radius: 1330 mm

    • Max. Upgrade Height of Bulldozer Blade: 345 mm

    • Max. Digging Depth of Bulldozer Blade: 255 mm

MK12-4 MINI EXCAVATOR

  • MK108 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful

    • Weight: 1000 kg

    • Digging Bucket Capacity: 0.025 cbm / 120 kg

    • Bucket Width: 380 mm

    • Engine: Koop (292f)

    • Optional Engine: Briggs & Stratton, Yanmar

    • Bore Stroke: Single Cylinder, Fan Cool

    • Rated Power: 7 kW / 3000 r/min

    • Displacement: 6.8 ml/r

    • Travel Speed: 1.5 km/h

    • Overall Dimension (L x W x H): 2775 x 930 x 2219 mm

    • Wheelbase: 910 mm

    • Total Length of Track: 1230 mm

    • Platform Ground Clearance: 380 mm

    • Platform Back Turning Radius: 784 mm

    • Chassis Width: 897 mm

    • Track Width: 180 mm

    • Chassis Ground Clearance: 132 mm

    • Track Height: 320 mm

    • Max. Digging Depth: 1750 mm

    • Max. Vertical Digging Depth: 1375 mm

    • Max. Digging Height: 2610 mm

    • Max. Dumping Height: 1850 mm

    • Max. Digging Radius on Ground: 2850 mm

    • Min. Rotation Radius: 1330 mm

    • Max. Upgrade Height of Bulldozer Blade: 345 mm

    • Max. Digging Depth of Bulldozer Blade: 255 mm

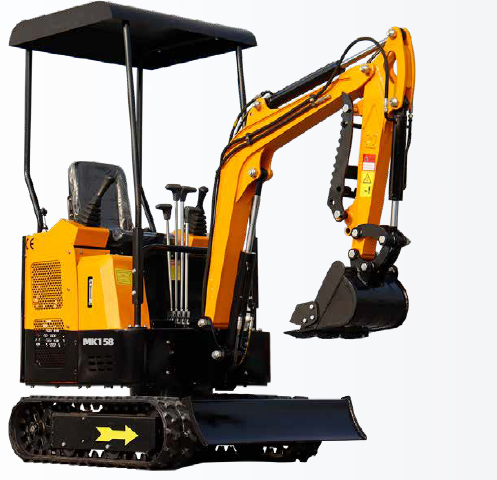

MK158 MINI EXCAVATOR

  • MK158 Due to its small size and very high operational flexibility, small

    excavators can adapt to many small space operations, and can be operated

    indoors and outdoors.

    • Weight: 1500 kg

    • Digging Bucket Capacity: 0.025 cbm / 120 kg

    • Bucket Width: 380 mm

    • Engine: KOOP (292F)

    • Bore Stroke: Double Cylinder, Air Cool

    • Rated Power: 14 kW / 3000 r/min

    • Displacement: 0.794 L

    • Travel Speed: 3.5 km/h

    • Overall Dimension (L x W x H): 2550 x 940 x 1380 mm

    • Wheelbase: 770 mm

    • Total Length of Track: 1090 mm

    • Platform Ground Clearance: 380 mm

    • Platform Back Turning Radius: 733 mm

    • Chassis Width: 940 mm

    • Track Width: 180 mm

    • Chassis Ground Clearance: 380 mm

    • Track Height: 320 mm

    • Max. Digging Depth: 1650 mm

    • Max. Vertical Digging Depth: 1800 mm

    • Max. Digging Height: 2610 mm

    • Max. Dumping Height: 1850 mm

    • Max. Digging Radius on Ground: 2850 mm

    • Min. Rotation Radius: 1330 mm

    • Max. Upgrade Height of Bulldozer Blade: 345 mm

    • Max. Digging Depth of Bulldozer Blade: 255 mm

MK18U MINI EXCAVATOR

  • MK18U Small excavators can be installed with a variety of auxiliary working

    tools, such as crushing hammers, hydraulic pliers, etc., suitable for work in

    narrow areas.

    • Engine: Laidong LD385 / Kubota D722

    • Power: 39 HP

    • Weight: 1300 kg

    • Bucket Capacity: 0.04 m³

    • Track Width: 180 mm

    • Track Length: 1500 mm

    • Bucket Width: 415 mm

    • Chassis Width: 1100 mm

    • Chassis Length: 1800 mm

    • Wheelbase: 920 mm

    • Ground Clearance: 380 mm

    • Overall Dimensions (L x W x H): 2250 x 1100 x 2200 mm

    • Transport Length: 2550 mm

    • Overall Height: 2150 mm

    • Digging Height: 2900 mm

    • Digging Depth: 2000 mm

    • Ground Digging Radius: 3227 mm

    • Turning Radius: 840 mm

    • Unloading Height: 2000 mm

    • Shovel Lifting Height: 325 mm

MK158P MINI EXCAVATOR

  • MK158P In terms of excavation, loading and unloading, migration, etc.,

    due to the small characteristics of the small excavator itself, it can be faster,

    more time-saving and easier to complete the overall operation.

    • Engine Model 1: Kubota D722 / 10.2 kW

    • Engine Model 2: Kubota Z482 / 8.3 kW

    • Alternative Engine: Koop / 7.5 kW
      Transport Length (A): 2300 mm

    • Overall Width (B): 930 mm

    • Upper Width (D): 990 mm

    • Overall Height (Cab Roof, C): 2270 mm

    • Standard Track Plate Width (F): 180 mm

    • Gauge (E): 750 mm

    • Shovel Height Above Ground (G): 110 mm

    • Bulldozer Push Digging Depth (H): 200 mm

    • Tail Swing Radius (I): 800 mm

    • Track Grounding Length (J): 890 mm

    • Track Length (K): 1235 mm

    • Maximum Digging Height (a): 2690 mm

    • Maximum Unloading Height (b): 1825 mm

    • Maximum Digging Depth (c): 1710 mm

    • Maximum Digging Distance (d): 2920 mm

    • Minimum Turning Radius (e): 1500 mm

    • Maximum Height at Minimum Turning Radius (f): 2110 mm

    • Weight: 1500 kg

    • Bucket Capacity: 0.02 m³

    • Type of Working Equipment: Backhoe

    • Climbing Ability: 30°

MK18-3 MINI EXCAVATOR

  • MK18-3 multi-functional mini excavator complies with Euro 5 standards

    and EPA environmental requirements, has ISO and CE certification, and

    supports OEM and ODM customization. The four-legged shed can be

    replaced with a closed cab, and the engine is powerful.

    • Working Weight: 1800 kg

    • Bucket Capacity: 0.03 m³

    • Power: 10.2 kW / 14 kW

    • Swing Speed: 12 RPM

    • Gradeability: 30°

    • Engine: KUBOTA D722 / KOOP 292

    • Main Valve: Beifang

    • Overall Length (A): 4325 mm / 1655 mm

    • Overall Width (B): 1100 mm

    • Upper Width (D): 990 mm

    • Overall Height (C): 2272 mm

    • Standard Track Shoe Width (F): 180 mm

    • Track Gauge (G): 920 mm

    • Min. Ground Clearance (H): 119 mm

    • Tail Turning Radius (I): 790 mm

    • Track Ground Length (J): 1050 mm

    • Track Length (K): 1545 mm

    • Max. Digging Height (a): 2580 mm

    • Max. Unloading Height (b): 1637 mm

    • Max. Digging Depth (c): 2060 mm

    • Max. Digging Distance (d): 3160 mm

    • Min. Turning Radius (e): 1711 mm

    • Max. Height at Minimum Turning Radius (f): 2048 mm

    • Boom Swing Angle (Left): 75°

    • Boom Swing Angle (Right): 45°

MK18 MINI EXCAVATOR

  • MK18 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful.

    • Operating Weight: 1560 kg

    • Bucket Capacity: 0.03 m³

    • Bucket Width: 40 cm

    • Rated Power: 10.2 kW / 2500 RPM

    • Swing Speed: 12 RPM

    • Gradeability: 30°

    Engine and Hydraulic System

    • Engine: KUBOTA D722

    • Main Valve: Beifang

    • Hydraulic Oil Tank Capacity: 21 L

    • Overall Length: 4325 mm

    • Transport Length (A): 1655 mm

    • Overall Width (B): 1100 mm

    • Upper Width (D): 990 mm

    • Total Height (C): 2272 mm

    • Width of Track Shoe (F): 180 mm

    • Gauge (G): 920 mm

    • Minimum Ground Clearance (H): 119 mm

    • Tail Turning Radius (I): 790 mm

    • Track Ground Length (J): 1050 mm

    • Track Length (K): 1545 mm

    • Swing Boom (Left/Right): 60 degrees

    • Max. Digging Height (a): 2580 mm

    • Max. Uploading Height (b): 1637 mm

    • Max. Digging Depth (c): 2060 mm

    • Max. Digging Distance (d): 3160 mm

    • Min. Radius of Gyration (e): 1711 mm

    • Max. Height at Minimum Radius of Gyration (f): 2048 mm

MK20 MINI EXCAVATOR

  • MK20 High performance. Excavators have high strength and efficient

    working capacity, which can provide greater benefits under various

    construction conditions.

    • Total Length / Transportation Length: 3337 mm / 2597 mm

    • Total Width: 1100 mm

    • Upper Width: 1053 mm

    • Total Height: 2325 mm

    • Track Width: 180 mm

    • Track Gauge: 920 mm

    • Mini. Ground Clearance: 119 mm

    • Tail Swing Radius: 1013 mm

    • Track Ground Length: 1050 mm

    • Track Length: 1545 mm

    • Engine Options:

      • Kubota D902 (11.8 kW, China)

      • Laidong 385 / 3TN25 (19 kW)

    • Valve: Beifang

    • Working Weight: 2000 kg

    • Bucket Capacity: 0.02 m³

    • Rated Power: 19 kW / 2200 RPM

    • Revolution Speed: 12 RPM

    • Gradeability: 30°

    • Max. Digging Height: 2580 mm

    • Max. Dumping Height: 1637 mm

    • Max. Digging Depth: 2060 mm

    • Max. Digging Distance: 3130 mm

    • Min. Swing Radius: 1575 mm

    • Height When Min. Swing Radius: 2075 mm

MK25U-9 MINI EXCAVATOR

  • MK25U-9 multi-functional mini excavator complies with Euro 5 standards

    and EPA environmental requirements, has ISO and CE certification, and

    supports OEM and ODM customization. The four-legged shed can be

    replaced with a closed cab, and the engine is powerful.

    • Machine Size (L x W x H): 2700 x 1300 x 2550 mm

    • Operating Weight: 2500 kg

    • Bucket Capacity: 0.06 m³

    • Track Width: 250 mm

    • Track Length: 1800 mm

    • Digging Bucket Width: 420 mm

  • Engine: Kubota D1105 (14.2 kW) / Changchai 390 (20 kW)
    Chassis Width: 1300 mm

    • Chassis Length: 2160 mm

    • Dozer Blade Height: 290 mm

    • Digging Height: 3400 mm

    • Digging Depth: 2600 mm

    • Dumping Height: 2673 mm

    • Excavation Radius: 4163 mm

    • Turning Radius: 756 mm

MK35 MINI EXCAVATOR

  • MK35 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful..

    • Name: Crawler Excavator

    • Model: MK35

    • Bucket Capacity: 0.1 m³

    • Engine: Xinchai 490 (36.8 kW) / Kubota

    • Walking Speed: 2.7 km/h

    • Rotation Speed: 10 r/min

    • Climbing Gradient: 30°

    • Total Length: 4180 mm

    • Total Width: 1500 mm

    • Total Height: 2200 mm

    • Crawler Length: 2300 mm

    • Crawler Width: 250 mm

    • Body Width: 1500 mm

    • Platform Clearance to Ground: 458 mm

    • Maximum Digging Height: 3900 mm

    • Maximum Dumping Height: 2600 mm

    • Maximum Digging Depth: 2500 mm

    • Maximum Digging Radius: 4040 mm

    • Swing Angle: 360°

MK30 MINI EXCAVATOR

  • MK30 multi-functional mini excavator complies with Euro 5 standards and

    EPA environmental requirements, has ISO and CE certification, and supports

    OEM and ODM customization. The four-legged shed can be replaced with a

    closed cab, and the engine is powerful.

    • Name: Crawler Excavator

    • Model: MK30

    • Bucket Capacity: 0.1 m³

    • Engine: Laidong 3TE30 (22.1 kW) / Kubota

    • Walking Speed: 2.7 km/h

    • Rotation Speed: 10 r/min

    • Total Length: 4180 mm

    • Total Width: 1350 mm

    • Total Height: 2200 mm

    • Crawler Length: 2000 mm

    • Crawler Width: 230 mm

    • Body Width: 1350 mm

    • Platform Clearance to Ground: 458 mm

    • Maximum Digging Height: 3900 mm

    • Maximum Dumping Height: 2600 mm

    • Maximum Digging Depth: 2500 mm

    • Maximum Digging Radius: 4040 mm

    • Swing Angle: 360°

    • Climbing Gradient: 30°

MK35U -7 MINI EXCAVATOR

  • MK35U-7 High Performance􀄑Strong power ensures reliability in tough

    working conditions. Higher Comfortability􀄑The suspension seat with a higher

    backrest and adjustable wrist rest improves the comfortable operation

    experience.

    • Emission Standard: Euro 5, EPA4

    • Make / Model: KUBOTA / D1703

    • Power / Rotation Speed: 18.2 kW (25 HP) @ 2200 rpm

    • Number of Cylinders: 3

    • Type: In-line, water-cooled, 4-stroke, mechanical pump, normally aspirated

    • Max. Torque: 97.4 Nm @ 1500 rpm

    • Displacement: 1.642 L

    Track Driving System

    • Maximum Travel Speed (High/Low): 4.4 / 2.4 km/h

    • Width of Steel Track Shoe: 300 mm

    • Carrier Roller (Each Side): 1

    • Supporting Roller (Each Side): 4
      Standard Bucket Capacity: 0.12 m³

    • Swing Speed: 12 rpm

    • Maximum Grade Ability: 58% (30°)

    • Ground Pressure: 32 kPa

    • Maximum Bucket Digging Force: 30.4 kN

    • Maximum Arm Digging Force: 18.2 kN

    • Hydraulic System Pressure: 22.5 MPa

    • Machine Weight: 3810 kg

    Boom and Arm Specifications

    • Boom Length: 2535 mm

    • Arm Length: 1400 mm

    Tank Capacities

    • Fuel Tank Capacity: 40 L

    • Hydraulic Oil Tank Capacity: 44 L

    • Engine Oil Capacity: 7 L

    • Radiator Capacity: 3.8 L

    • Final Drive: 2 x 0.7 L

    • Overall Dimensions (L x W x H): 4915 mm x 1720 mm x 2525 mm

    • Axle Base (Track Length on Ground): 1670 mm

    • Length of Rubber Track: 2154 mm

    • Track Gauge: 1420 mm

    • Minimum Ground Clearance: 295 mm

    • Swing Radius at Tail: 860 mm

    • Swing Radius at Front: 2538 mm

    • Maximum Digging Height: 4800 mm

    • Maximum Dumping Height: 3406 mm

    • Maximum Digging Depth: 3208 mm

    • Maximum Vertical Digging Depth: 2957 mm

    • Maximum Digging Distance (Working Radius): 5480 mm

    • Maximum Digging Distance (On Ground): 5359 mm

    • Minimum Swing Radius: 2530 mm

    • Max. Height When Min. Swing Radius: 3655 mm

    • Maximum Lifting Height of Blade: 365 mm

    • Maximum Cutting Depth of Blade: 385 mm

    • Boom Swing Angle (Left/Right): 55° / 65°

MK30U-6A MINI EXCAVATOR

  • MK30U-6A multi-functional mini excavator complies with Euro 5 standards

    and EPA environmental requirements, has ISO and CE certification, and

    supports OEM and ODM customization. The four-legged shed can be

    replaced with a closed cab, and the engine is powerful.

    • Emission Standard: EPA4 / EURO 5

    • Make: KUBOTA

    • Model: D1105

    • Power / Rotation Speed: 14 kW (19 HP) @ 2200 rpm

    • Number of Cylinders: 3

    • Type: Water-cooled, in-line, 4-stroke, mechanical pump, naturally aspirated

    • Max. Torque of Engine: 70.3 Nm @ 1600 rpm

    • Displacement of Engine: 1.123 L

    • Engine Oil Capacity: 5.1 L

    • Maximum Travel Speed (High-Low Speed): 2.6 / 4.5 km/h

    • Width of Track Shoe (Rubber): 300 mm

    • Carrier Roller (One Side): 1

    • Support Wheel (One Side): 3

    • Standard Bucket Capacity: 0.1 m³

    • Width of Standard Bucket: 500 mm

    • Swing Speed: 10 rpm

    • Max. Gradeability: 58%

    • Max. Bucket Digging Force: 23.5 kN

    • Max. Arm Digging Force: 14 kN

    • Hydraulic System Pressure: 20.5 MPa

    • Ground Pressure: 24 kPa

    • Machine Weight: 2750 kg

    • Fuel Tank Capacity: 23 L

    • Hydraulic Oil Tank Capacity: 24 L

    • Flow of Main Pump (Variable Piston Pump): 61.6 L/min

MK60 MINI EXCAVATOR

  • MK60 High performance. Excavators have high strength and efficient

    working capacity, which can provide greater benefits under various

    construction conditions.

  • Dynamical System / Hydraulic System

    • Model: Yanmar 4TNV94

    • Power: 37.4 kW @ 2200 rpm

    • Cooling Method: Water-Cooling

    • Operating Pressure: 28 MPa

    • Hydraulic Flow: 109 L/min

    • Pump: Plunger

    • Walking Motor: Two-Speed Plunger

    • Hydraulic System: Load Sensing System

    • Total Weight: 6000 kg

    • Shipping Length: 5850 mm

    • Total Height During Transportation: 2575 mm

    • Upper Shelf / Chassis Width: 1880 mm

    • Track Width: 400 mm

    • Track Length: 2540 mm

    • Track Gauge: 1880 mm

    • Min. Ground Clearance: 680 mm

    • Boom Length: 3000 mm

    • Stick Length: 1600 mm

    • Max. Digging Height: 5760 mm

    • Max. Dumping Height: 4030 mm

    • Max. Digging Depth: 3820 mm

    • Max. Digging Radius: 6150 mm

    • Min. Radius of Gyration: 2250 mm

    • Maximum Lifting Height of Earth Shovel: 359 mm

    • Maximum Digging Depth of Dozer: 268 mm

    • Min. Tail Swing Radius: 1170 mm

    • Bucket Capacity: 0.3 m³

    • Climbing Ability: 35°

    • Maximum Digging Force: 5560 N

    • Travel Speed: 2.4 - 3.8 km/h

    • Unit Swing Speed: 8-10 r/min

    • Hydraulic Tank Capacity: Not Specified

Rentals and Financing

Hunt Equipment Sales and Rentals is committed to making equipment acquisition simple and accessible for businesses and individuals. We offer flexible financing options (OAC) tailored to your needs, ensuring you can get the tools and machinery you require without upfront financial strain. Additionally, our straightforward rental process provides convenient short-term solutions for projects of any size. Whether you're financing or renting, our team is here to guide you every step of the way. To get started, fill out the form on our website or contact Hunt Equipment Sales and Rentals directly for personalized assistance.
